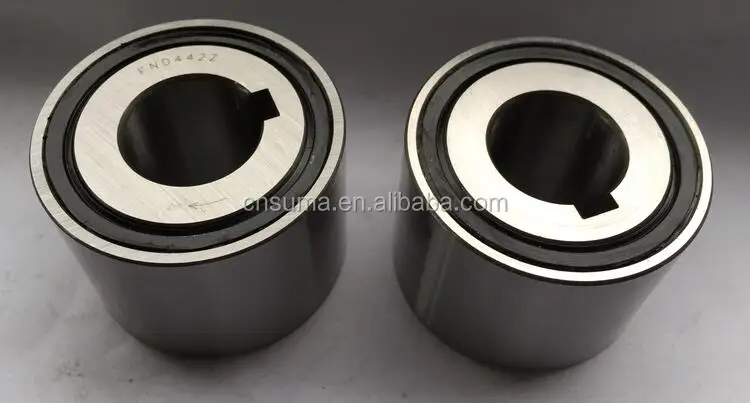

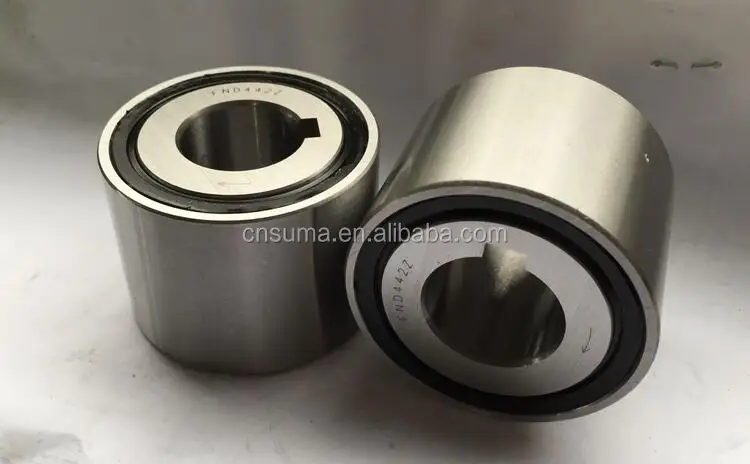

FND442Z Sprag Type Freewheel Clutch One Way Bearing with Precision Rating P6 20mm Inner Diameter and 46mm Outer Diameter
Premium Products
FND442Z Sprag Type Freewheel Clutch One Way Bearing with Precision Rating P6 20mm Inner Diameter and 46mm Outer Diameter
1
2
3
4
5
6
Model Number :FND442Z
Brand Name :SUMA
Place of Origin :Jiangsu, China
MOQ :2
Price :$34-50
Precision Rating :P6
Seals Type :Sealed
Type :roller
Material :Steel, ST14
Inner diameter :20mm
Outer diameter :46mm
Thickness :34mm
Torque capacity :208Nm
Weight :0.28kg
Operating temperature :max. 100° C
Lubrication :Operative lifetime oil lubrication
Shaft tolerance :h5
Hub tolerance :H6
Max speed :1,500 rpm
Dynamic load :10,247 N
Static load :10,708 N
Contact Now
FND442M FND442Z Sprag Type Freewheel Clutches One Way Bearing
Product Description
Features of FND Complete Freewheel Clutch Unit
Characteristics
Width:34 mm
Operating temperature:max. 100° C
Lubrication
Operative lifetime oil lubrication
Installation
Installation tolerances
Shaft h5; hub H6

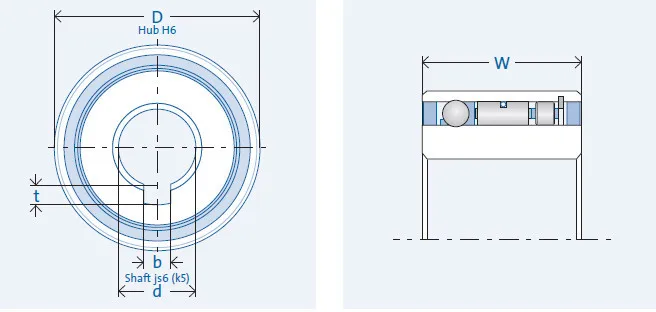

Catalogue of FND Complete Freewheel Clutch Unit for your choice
Designation
d
D
W
Tnom
nmax
Cdyn.
Cstat.
Weight
b
t
Item no.
[mm]
[mm]
[mm]
[Nm]
[rpm]
[N]
[N]
[kg]
[mm]
[mm]
FND 437 M
15
41
34
176
1,700
8,962
8,661
0.24
5
2.3
300737
FND 437 Z
15
41
34
161
1,700
8,962
8,661
0.24
5
2.3
300738
FND 442 M
20
46
34
223
1,500
10,247
10,708
0.28
6
2.8
300743
FND 442 Z
20
46
34
208
1,500
10,247
10,708
0.28
6
2.8
300744
FND 453 M
25
58
34
343
1,200
11,417
13,577
0.46
8
3.3
300751
FND 453 Z
25
58
34
314
1,200
11,417
13,577
0.46
8
3.3
300752
FND 459 M
30
64
34
411
1,100
12,691
16,320
0.55
8
3.3
300758
FND 459 Z
30
64
34
381
1,100
12,691
16,320
0.55
8
3.3
300760
FND 463 M
35
68
34
462
1,100
13,070
17,063
0.6
10
3.3
306528
FND 463 Z
35
68
34
428
1,100
13,070
17,063
0.6
10
3.3
306529
FND 470 M
40
75
34
550
1,000
14,050
19,840
0.69
12
3.3
300765
FND 470 Z
40
75
34
509
1,000
14,050
19,840
0.69
12
3.3
300766
FND 473 M
45
78
34
588
1,000
14,128
19,896
0.73
14
3.8
306532
FND 473 Z
45
78
34
543
1,000
14,128
19,896
0.73
14
3.8
306533
Detailed Images
Company Information
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Production flow
Certifications
FAQ
Q: How do you pack the goods?
Total less than 25 KG:Each in white box + 19*18*9cm box + 29*28*19CM carton box
Total Weight over 100KG :Carton box +Wooden Box / Wooden Pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
