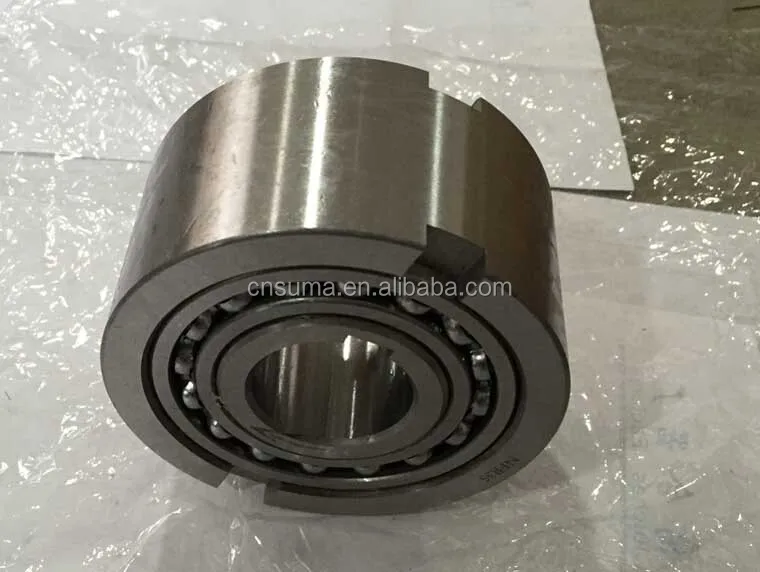

GF12 Model One-Way Clutch Bearing with 12mm Bore Diameter and 20Nm Torque Capacity for Hydraulic Cylinder
Premium Products
GF12 Model One-Way Clutch Bearing with 12mm Bore Diameter and 20Nm Torque Capacity for Hydraulic Cylinder
1
2
3
4
5
6
Brand Name :SUMA
Place of Origin :Jiangsu, China
Model Number :GF12
MOQ :2
Price :$4.90-9.90
Number of Row :Double row
Precision Rating :P0
Lubrication :Grease
Material :Chrome Steel
Outer Diameter :30 mm
Width :30 mm, 20mm
Bore Dia. :12mm
Weight :0.1kg
Type :Needle
Bore Diameter :20 mm(0.79in)
Inner Diameter :12mm
Torque capacity :20Nm
Drag Torque :0.11
Freewheel speed :1000 min-1
Shaft tolerance :h6 or j6
Contact Now
GF12 GF 12 One-Way Clutch Freewheel Roller Bearing for
Hydraulic Cylinder
SPECIFICATION
Model
GF12 Clutch Bearing
Material
GCr15
Type
Roller
Inner Diameter
12mm
Outer Diameter
37mm
Weight
0.1kg
Torque capacity
20Nm
Width
20mm
Drag Torque
0.11
Application
reducer,gearbox,other industry machine
Main Technical Specifications

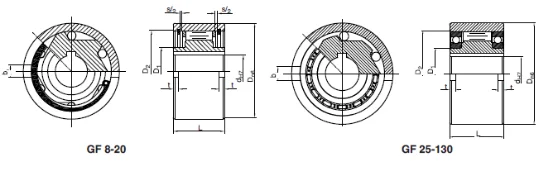

Dimensions(Dimensions in mm)
Type
dH7
Dn6
L
s
D1
D2
b
t
Weight
Inner ring
freewheels/
Outer ring
freewheels/
TKN
Drag torque
mm
mm
mm
mm
mm
mm
mm
mm
Kg
overruns min-1
overruns min-1
(Nm )
GF 8
8
37
20
1
20
30
6
3
0,1
1000
1000
20
0,09
GF 9
9
37
20
1
20
30
6
3
0,1
1000
1000
20
0,09
GF 12
12
37
20
1
20
30
6
3
0,1
1000
1000
20
0,11
GF 15
15
47
30
1
26
37
7
3,5
0,3
900
900
78
0,15
GF 20
20
62
36
1
37
52
8
3,5
0,6
700
700
188
0,18
GF 25
25
80
40
-
40
68
9
4
1,2
2100
3600
250
0,36
GF 30
30
90
48
-
45
75
12
5
1,8
1700
3200
500
0,40
GF 35
35
100
53
-
50
80
13
6
2,4
1500
3000
680
0,60
GF 40
40
110
63
-
55
90
15
7
3,3
1200
2600
1115
0,84
GF 45
45
120
63
-
60
95
16
7
4
1000
2400
1500
0,94
GF 50
50
130
80
-
70
110
17
8,5
5,7
800
2100
2375
1,28
GF 55
55
140
80
-
75
115
18
9
6,5
750
2000
2500
1,50
GF 60
60
150
95
-
80
125
18
9
8,9
650
1900
4250
1,60
GF 70
70
170
110
-
95
140
20
9
13,5
550
1800
5875
3,60
GF 80
80
190
125
-
110
160
20
9
19
500
1600
10000
3,60
GF 90
90
215
140
-
120
180
24
11,5
27,2
450
1400
17350
6,80
GF 100
100
260
150
-
140
210
28
14,5
44,5
350
1300
19750
8,80
GF 130
130
300
180
-
160
240
32
17,5
68
250
1000
35000
12,50
Features
1.The GF Series freewheels are self centering. From size 8 to size 20, centering is steel on steel, whilst from size 25 to 130, centering is ensured by 2 160 series bearings.
2.Torque forces are transmitted from the shaft to the inner race by means of a keyway and
from the outer race to the seat by means of front pullers.
3.Shaft tolerances must be either h6 or j6, seating tolerances must be H7 or G7.
4.If no front pullers are used, the seating tolerance becomes K6.
5.Before being put onto service, the freewheels must be lubricated with suitable .Oil lubrication
is essential when a high number of rotations in neutral is reached.
