MI300 Cam Clutch Bearing 314Nm Torque 300 Cycles/Min for Printing

Model Number : MI300 MG300

Brand Name : SUMA

Place of Origin : China

MOQ : 1

Price : $108-145

Precision Rating : P0

Seals Type : OPEN

Type : CAM, Cam clutch

Torque Capacity : 314 Nm

Max Indexing : 300 cycle/min

Drag Torque : 0.31 Nm

Weight : 1.8 kg

Bore Size : 19 mm

Outer Race : 77 mm

Keyway : 5x2

PCD : 63 mm

H-M : 13 mm

Tapped Holes : 4xM6xP1.0

Max Overrunning : 2800 r/min

Max Indexing Speed : 900 cycle/min

Contact Now

MI300 MG300 One Way Cam Clutch Bearing for Offset Printing Machine

Product Description

MI300 Cam Clutch Bearing 314Nm Torque 300 Cycles/Min for Printing

Features of One way cam clutch bearing

  • Mainly used for indexing applications
  • Delivers high precision intermittent feed
  • Perfect for medium- and low-speed indexing applications where the feed length is short
  • Also excellent for applications subject to load changes in continuous engagement operations (overrunning)

SPECIFICATIONS
Item

MI300 one way cam clutch

Precision P0
Type cam
Bore size (mm) 19
Outer race (mm) 77
Torque (KN) 314Nm
Max. Indexing (cycle/min) 300
Drag Torque(Nm) 0.31
Weight (kg) 1.8kg
Package wooden box or customizable
Delivery time 5-7 days after order confirmed
Payment terms L/C, T/T, D/P, D/A, Western Union

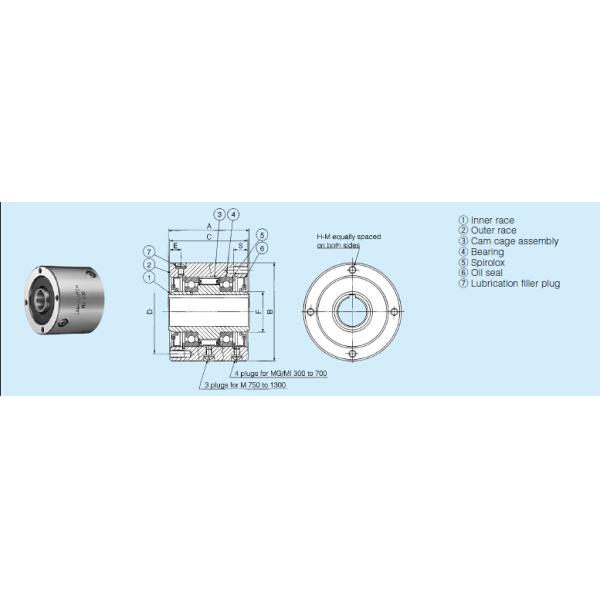

PARAMETER LIST of one -way cam clutches bearing

MI300 Cam Clutch Bearing 314Nm Torque 300 Cycles/Min for Printing

Model Torque Drag Max.
Overrunning		 Max. Bore Size PCD H-M
No.of		 Weight
Capacity Torque (r/min) Indexing A B C E F S

Tapped Holes

×Size×Pitch

 (kg)
(Nm) (Nm)

Inner

Race

Outer

Race

 (cycle/
min)

Dia.

(H7)

 Keyway (h7) D
MG 300 314 0.23 2800 900 _ 19 5x2 63 77 60 66 10.4 28.5 13 4xM6xP1.0 1.8
MI 300 0.31 50 _ 300
MG 400 539 0.29 2600 800 _ 22 5x2 70 88 67 73 10.7 31.7 16 4XM8xP1.25 2.7
MI 400 0.38 50 _ 300
MG 500 1620 0.51 2400 800 _ 31.5 7x3 89 108 86 92 12.3 44.4 16 4XM8xP1.25 5
MI 500 0.68 50 _ 300
MG 600 3140 0.85 2100 700 _ 50 12x3.5 95 136 92 120 12.8 69.8 16 6xM8xP1.25 8.6
MI 600 1.54 30 _ 300
MG 700 5880 1.7 1500 500 _ 70 18x6 127 180 124 160 19.8 101.5 20 6xM10xP1.5 19.5
MI 700 2.63 30 _ 300
MG 750 9500 3.43 1800 600 _ 85 24x6 153 200 150 175 75 110 25 8xM14xP2.0 37
MI 750 4.12 30 _ 300
MG 800 17600 5.39 1300 475 _ 110 28x7 158 250 155 220 77.5 140 25 8xM16xP2.0 46.5
MI 800 8.33 20 _ 300
MG 900 24500 6.77 1200 400 _ 135 35x9 165 300 160 265 80 170 32 10xM16xP2.0 70.5
MI 900 9.41 20 _ 300
MG 1000 33800 8.14 1200 325 _ 160 38x10 188 370 180 325 90 200 32 12xM16xP2.0 108.5
MI 1000 12.74 20 _ 300
MG 1100 78400 15 350 _ _ 185 45x14 260 470 250 415 125 260 40 12xM20xP2.5 250
MI 1100 22.15 20 _ 150
MG 1200 95100 17.64 300 _ _ 200 45x14 260 500 250 440 125 280 45 12xM24xP3.0 280
MI 1200 27.54 20 _ 150
MG 1300 176000 18.72 250 _ _ 250 56x17.5 280 600 260 530 130 340 50 12xM30xP3.5
MI 1300 28.13 20 _ 150

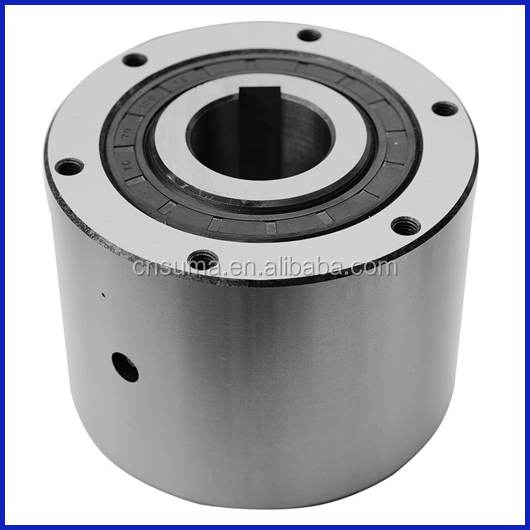

Detailed Images

MI300 Cam Clutch Bearing 314Nm Torque 300 Cycles/Min for PrintingMI300 Cam Clutch Bearing 314Nm Torque 300 Cycles/Min for PrintingMI300 Cam Clutch Bearing 314Nm Torque 300 Cycles/Min for Printing

Application

MI300 Cam Clutch Bearing 314Nm Torque 300 Cycles/Min for Printing

MI300 Cam Clutch Bearing 314Nm Torque 300 Cycles/Min for PrintingMI300 Cam Clutch Bearing 314Nm Torque 300 Cycles/Min for Printing

FAQ

Q: How do you pack the goods?

  • Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
  • Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  • Small items: In stock.
  • Medium Items: 10-15 Days
  • Big items: 20-25 Days
