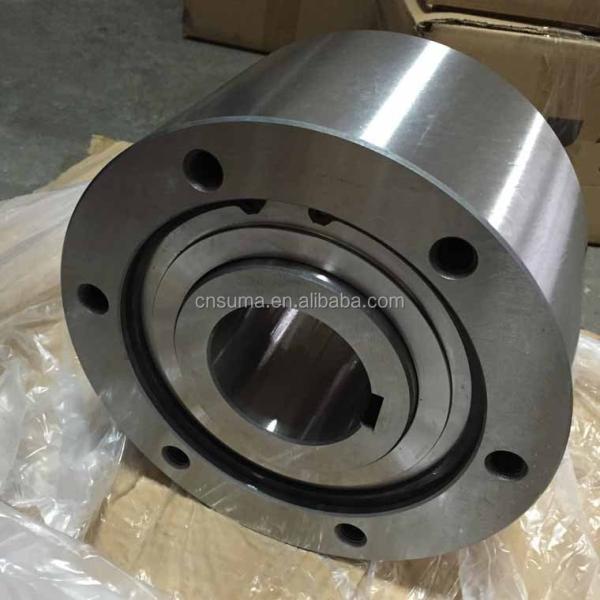

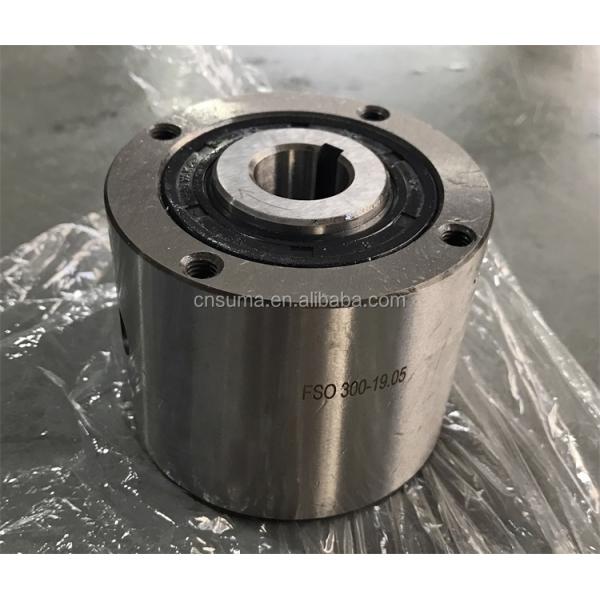

FS600 FS700 FS800 Sprag Type Freewheel Clutch Bearing

Brand Name : SUMA or OEM

Model Number : FS600 FS700 FS800

Place of Origin : Jiangsu, China

MOQ : 1

Type : Sprag

Precision Rating : P0

Seals Type : Sealed

Material : GCr15

Inner Diameter : 15-70mm

Outer Diameter : 76.2-180.975mm

Weight : 1.6-19kg

Lubricant : MoS2 powder lubricant

Dynamic Load : 245KN

Static Load : 1220KN

Overrunning Speeds : 3000/900 min-1

Drag Torque : 18-156 Ncm

Model Range : HPI300 to 700

Mounting Type : Self-contained, sealed

Lubrication Type : Oil or grease

Contact Now

FS600 FS700 FS800 Sprag Type Freewheel Clutch Bearing One Direction Sprag Clutch

Product Description
Freewheel Clutch HPI 300-700
Details
Model HPI / FS / FSO
Material GCr15
Type Sprag
Inner Diameter 15-70mm
Outer Diameter 76.2-180.975mm
Weight 1.6-19kg
Lubricant MoS2 powder lubricant
Load Ratings Dynamic 245KN
Stactic 1220KN
Application Industrial Machines

Feature

Types HPI300 to 700 are sprag type freewheels selfcontained, sealed and bearing supported, using two ball bearings.
Units are delivered oil or grease lubricated according to the type.

full sprag complement? that gives a very high torque for a given diameter. Any overload is resisted by a sprag to sprag abutment, avoiding a sprag tilt over. Types FSO and HPI are oil lubricated and use standard shaft lip seals. Type FSOGR is grease lubricated and can be equipped with contact free labyrinth seals. Type HPI is specially designed for high speed indexing applicatation.

FS600 FS700 FS800 Sprag Type Freewheel Clutch Bearing

Type
 Size Overrunning Weight Torque
speeds Drag
HPI dH7-bxh d4) A B C E F G K f TR
HPI TKN1) nmax2) min-max -0.05
[Nm] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg] [Ncm]
300 379 3000/900 15-5x5 12...19 63.5 76.2 60.45 1.6 28.58 66.67 13 0.8 1.6 18
400 407 2800/850 18-6x6 12...22 69.9 88.9 68.07 1.6 30 73 13 0.8 2.7 27
500 1621 2500/800 30-8x7 19...33 88.9 107.95 85.73 1.6 45 92 16 1.5 4.8 31
40-12x8
600 3105 2200/750 45-14x9 24...57 95.3 136.53 92.2 1.6 63.5 120.6 16 1.6 8.6 62
50-14x6
50-14x9
700 6900 1600/450 60-18x11 48...82 127 180.98 123.9 1.6 90 158.8 20 1.6 19 156
65-18x11
70-20x12 101.7

Mounting example

FS600 FS700 FS800 Sprag Type Freewheel Clutch Bearing

Detailed Image

FS600 FS700 FS800 Sprag Type Freewheel Clutch BearingFS600 FS700 FS800 Sprag Type Freewheel Clutch BearingFS600 FS700 FS800 Sprag Type Freewheel Clutch BearingFS600 FS700 FS800 Sprag Type Freewheel Clutch Bearing

Certifications

FS600 FS700 FS800 Sprag Type Freewheel Clutch Bearing

Cooperation

FS600 FS700 FS800 Sprag Type Freewheel Clutch BearingFS600 FS700 FS800 Sprag Type Freewheel Clutch Bearing

Production Flow

FS600 FS700 FS800 Sprag Type Freewheel Clutch Bearing

FAQ

Q: How do you pack the goods?

  • Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
  • Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  • Small items: In stock.
  • Medium Items: 10-15 Days
  • Big items: 20-25 Days
